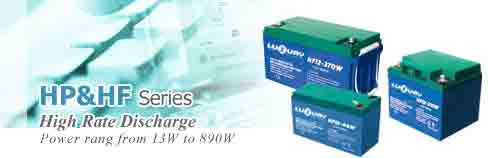

The new LUXURY HP&HF series batteries are specially designed for applications that require high power output. By optimum design of battery grids and plate paste formula, the HP&HF series can deliver up to 40% more power than LUXURY standard CP&FM series.
Features and Benefits
• Environmentally friendly
• Lower internal Resistance
• Positive and negative plates in lead-calcium tin alloy
• Superior energy density and very high power output
• Operates at a low internal pressure
• Gas Recombination
• A recognized component of UL
• Lead calcium grids for extended life Six months shelf life at 20
• Power range from 13W to 890W per cell for 10min@1.60V/cell
• Design life: HP-5 years, HF-10 years
General Features
• Environmentally friendly
• High Reliability and Good Quality
• Lower internal Resistance
• High Power Density
• Long Service Life, in Float and Cyclic
• International Standard, JIS and DIN
• Thick pasted plates with high quality
• lead-tin-calcium alloy grids for long service life
Applications
• Office machines and Computers
• Telecommunications
• UPS Equipment
• Electrical facilities
• Vending machine
|
aaaaaaaaaTypeaaaaaaaaa |
Nominal aaVoltage(V)aa |
Nominal Capacity /WPC (10min 1.60V) |
Nominal AACapacityAA /AH |
Length |
Width |
Height |
Total Height |
Terminal |
Weight(Approx) |
|||||
|
mm |
in |
mm |
in |
mm |
in |
mm |
in |
Kg |
Pound |
|||||
|
HP12-105W-X |
12 |
105 |
17 |
181 |
7.13 |
77 |
3.03 |
167 |
6.57 |
167 |
6.57 |
F13 |
5.9 |
13.01 |
|
HP12-116W-X |
12 |
116 |
20 |
181 |
7.13 |
77 |
3.03 |
167 |
6.57 |
167 |
6.57 |
F13 |
6.5 |
14.33 |
|
12 |
135 |
24 |
166 |
6.54 |
175 |
6.89 |
125 |
4.92 |
125 |
4.92 |
F13 |
8.6 |
18.96 |
|
|
12 |
155 |
28 |
165 |
6.50 |
125 |
4.92 |
175 |
6.89 |
175 |
6.89 |
F13 |
9.5 |
20.94 |
|
|
12 |
165 |
33 |
195 |
7.68 |
130 |
5.12 |
155 |
6.10 |
168 |
6.61 |
F11 |
11.1 |
24.47 |
|
|
12 |
211 |
45 |
197 |
7.76 |
165 |
6.50 |
170 |
6.69 |
170 |
6.69 |
F11 |
14.8 |
32.63 |
|
|
12 |
260 |
55 |
229 |
9.02 |
138 |
5.43 |
208 |
8.19 |
213 |
8.39 |
F11 |
17.2 |
37.92 |
|
|
12 |
320 |
75 |
258 |
10.16 |
166 |
6.54 |
206 |
8.11 |
215 |
8.46 |
F11 |
24.0 |
52.91 |
|
|
12 |
370 |
80 |
350 |
13.78 |
167 |
6.57 |
179 |
7.05 |
179 |
7.05 |
F11 |
26.2 |
57.76 |
|
|
12 |
420 |
90 |
306 |
12.05 |
169 |
6.65 |
210 |
8.27 |
215 |
8.46 |
F21 |
30.0 |
66.14 |
|
|
12 |
470 |
100 |
330 |
12.99 |
171 |
6.73 |
215 |
8.46 |
220 |
8.66 |
F12 |
33.0 |
72.75 |
|
|
12 |
560 |
120 |
410 |
16.14 |
176 |
6.93 |
224 |
8.94 |
224 |
8.94 |
F12 |
37.7 |
83.11 |
|
|
12 |
600 |
134 |
341 |
13.43 |
173 |
6.81 |
283 |
11.14 |
287 |
11.30 |
F12 |
41.5 |
91.49 |
|
|
12 |
650 |
150 |
482 |
18.98 |
170 |
6.69 |
240 |
9.45 |
240 |
9.45 |
F12 |
46.4 |
102.29 |
|
|
12 |
890 |
200 |
522 |
20.55 |
238 |
9.37 |
218 |
8.58 |
223 |
8.78 |
F10 |
67.5 |
148.81 |
|
|
12 |
1010 |
210 |
522 |
20.55 |
238 |
9.37 |
218 |
8.58 |
223 |
8.78 |
F10 |
67.0 |
147.71 |
|
|
12 |
400(15min/1.67V) |
330 |
12.99 |
171 |
6.73 |
215 |
8.46 |
220 |
8.66 |
F12 |
32.5 |
71.65 |
||
|
12 |
450(15min/1.67V) |
410 |
16.14 |
176 |
6.93 |
227 |
8.94 |
227 |
8.94 |
F12 |
36.5 |
80.47 |
||
|
12 |
550(15min/1.67V) |
482 |
18.98 |
170 |
6.69 |
240 |
9.45 |
240 |
9.45 |
F12 |
45.0 |
99.21 |
||
|
12 |
800(15min/1.67V) |
522 |
20.55 |
238 |
9.37 |
218 |
8.58 |
223 |
8.78 |
F38 |
61.0 |
134.48 |
||
